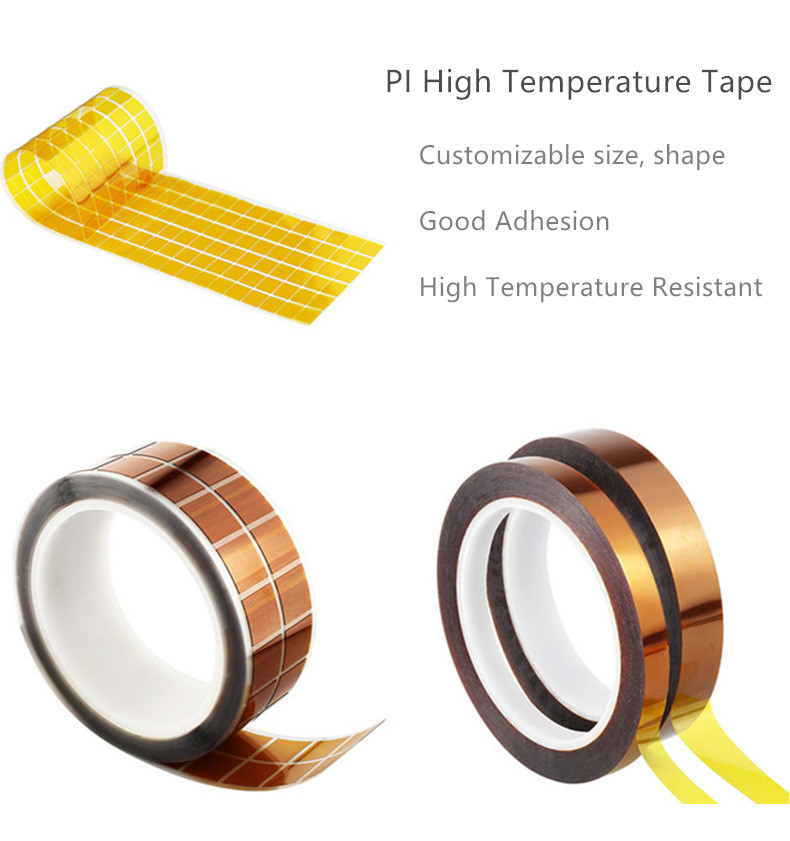

High-Temperature Tape

High-Temperature Tape

        Goldfinger High Temperature Tape is a protective tape with excellent adhesive properties and high

 temperature resistance, used for semiconductor chip package fixing and protection, removal without

 residual adhesive. Material and coating uniformity, high precision; using PI substrate, high temperature

 resistance characteristics of excellent, good thermal stability; filming and stripping without preheating;

no residual adhesive tape after peeling; high cleanliness of the product, no stains, impurities; ESD, for

high-end requirements.

     KKG High Temperature Tape is a protective tape with excellent adhesive properties and high temperature

 resistance, used for semiconductor chip encapsulation fixing and protection, remove no residual glue. It is

 used in the packaging process of semiconductor chips such as QFN to fix the lead frame and prevent the

 leakage of plastic sealing materials; it is also used for high temperature protection in the electronic process,

temporary fixing, masking, and the process of chip and film which requires precise protection.

The High Temperature Tape's structure is release film,organic silicone and PI base material.

1 Uniform material and coating with high precision;
2 Adoption of PI substrate with excellent high temperature resistance characteristics and good thermal stability;
3 No need to preheat when applying and peeling the film;
4 No residual adhesive after tape peeling;
5 High product cleanliness, no stains and impurities;
6 ESD-capable, for high-end requirements.

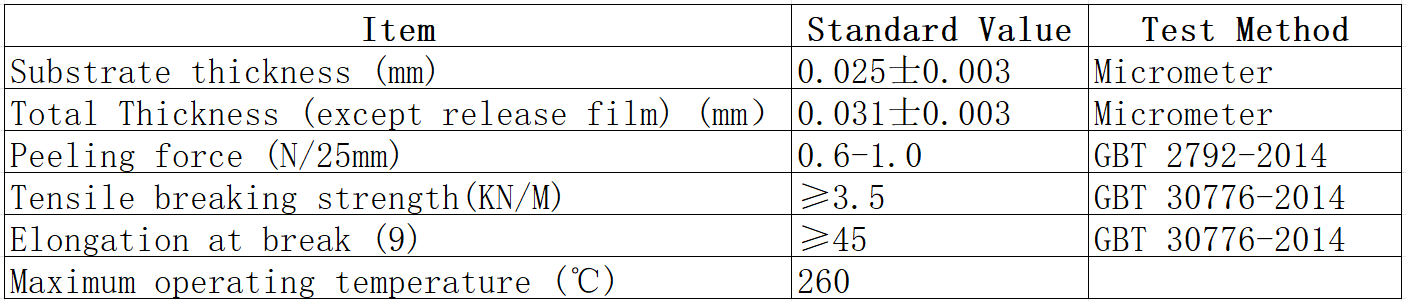

High Temperature Tape's parameter

High Temperature Tape's application are:

∙ Masking of gold fingers during PCB soldering and wave soldering, preventing plating solution immersion

and contamination.

∙ Electrical industry such as high temperature insulation bundling of transformer coils, insulation repair of

motor cables, etc.

∙ High temperature masking protection such as 3D printing boards, high temperature powder coating masking.....

∙ Resistors and capacitors, all kinds of electronic parts production applications.
